Hand Mounted User Interface

Hand Mounted User Interface
Coach Cards

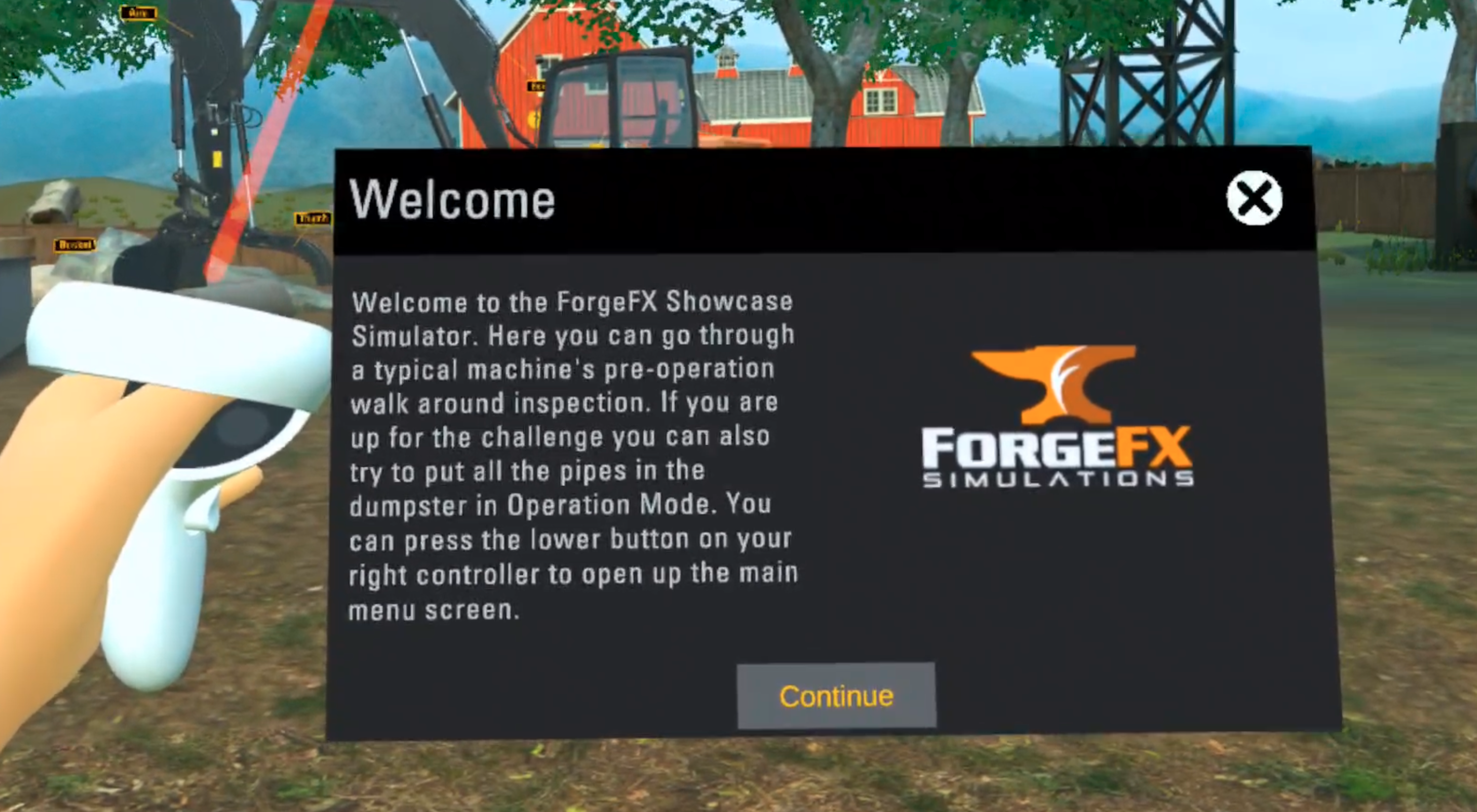

New User

Entered Walk Around Inspection Mode

Entered Operation Mode

Familiarization Inspection Points

Link to original

User Interactions

User Interactions
Inspection Mode Controls

Left Hand

Teleport/Move - Thumb Stick

Right Hand

Select - Trigger Grab - Grip Open Menu - A Button

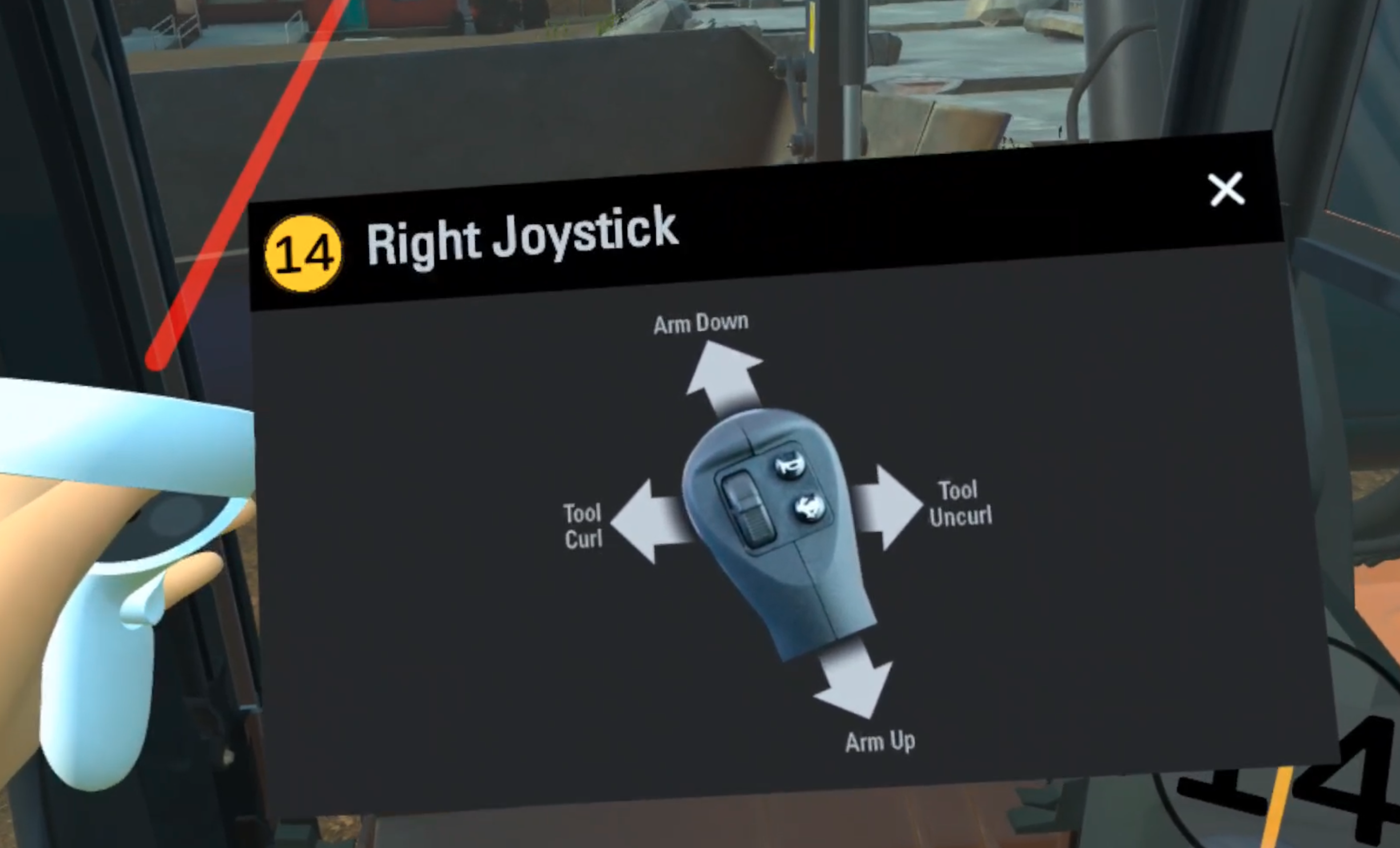

Operation Mode Controls

Controls are enabled when the Joysticks are held

Position/Gestural based with Thumb Stick interaction for replicate physical rocker

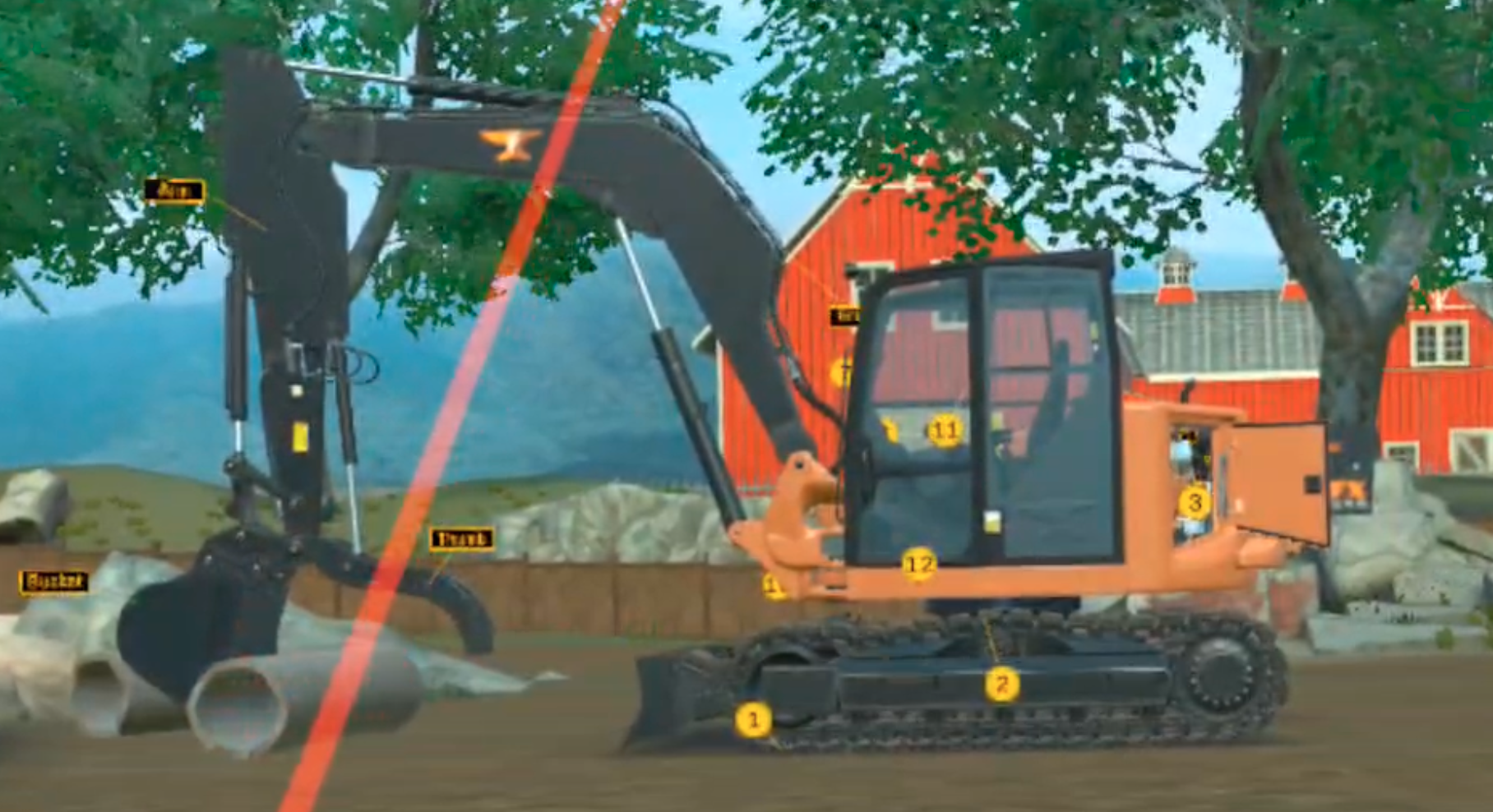

Number Inspection Points

Numbered Inspection Points

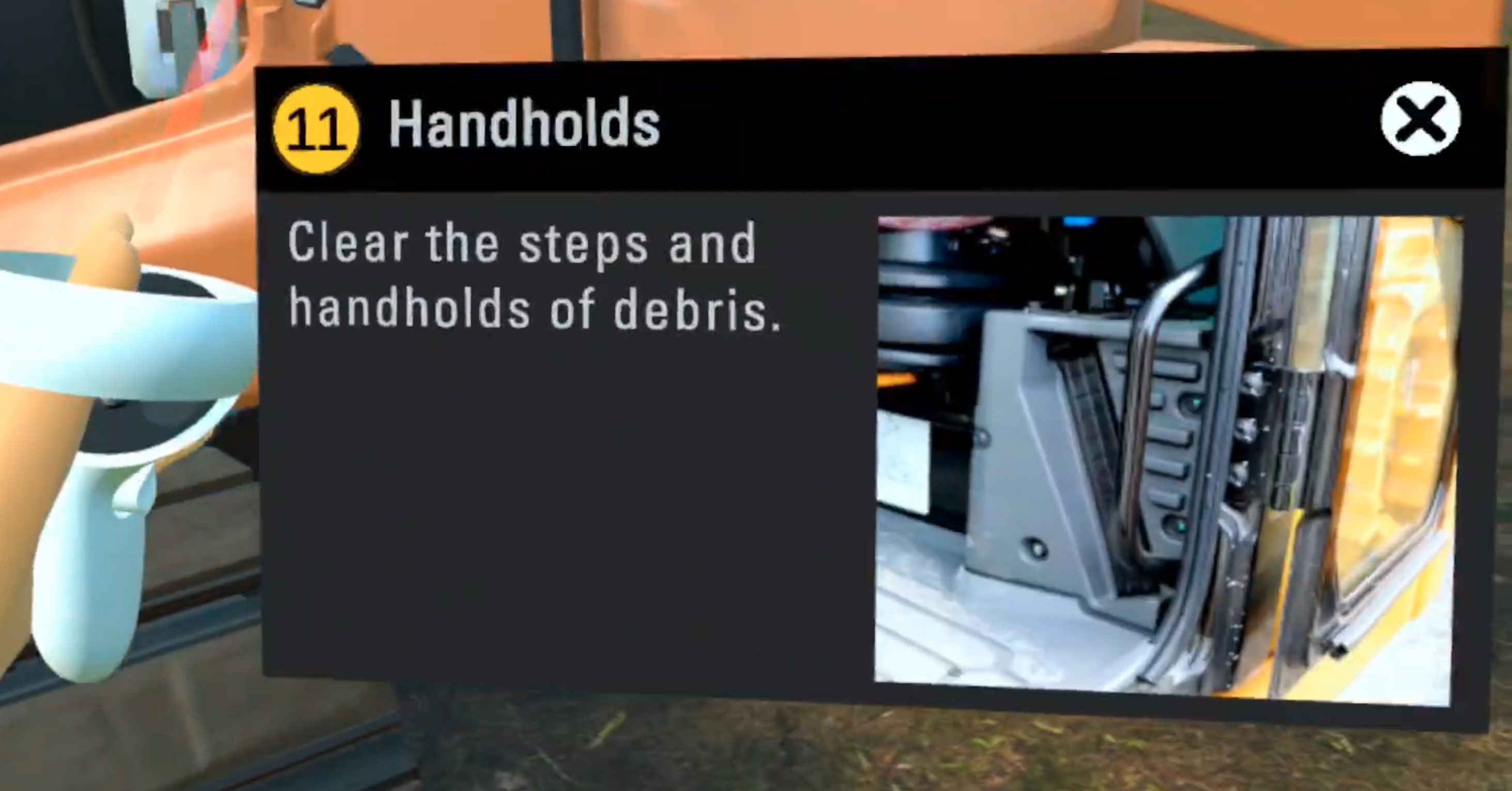

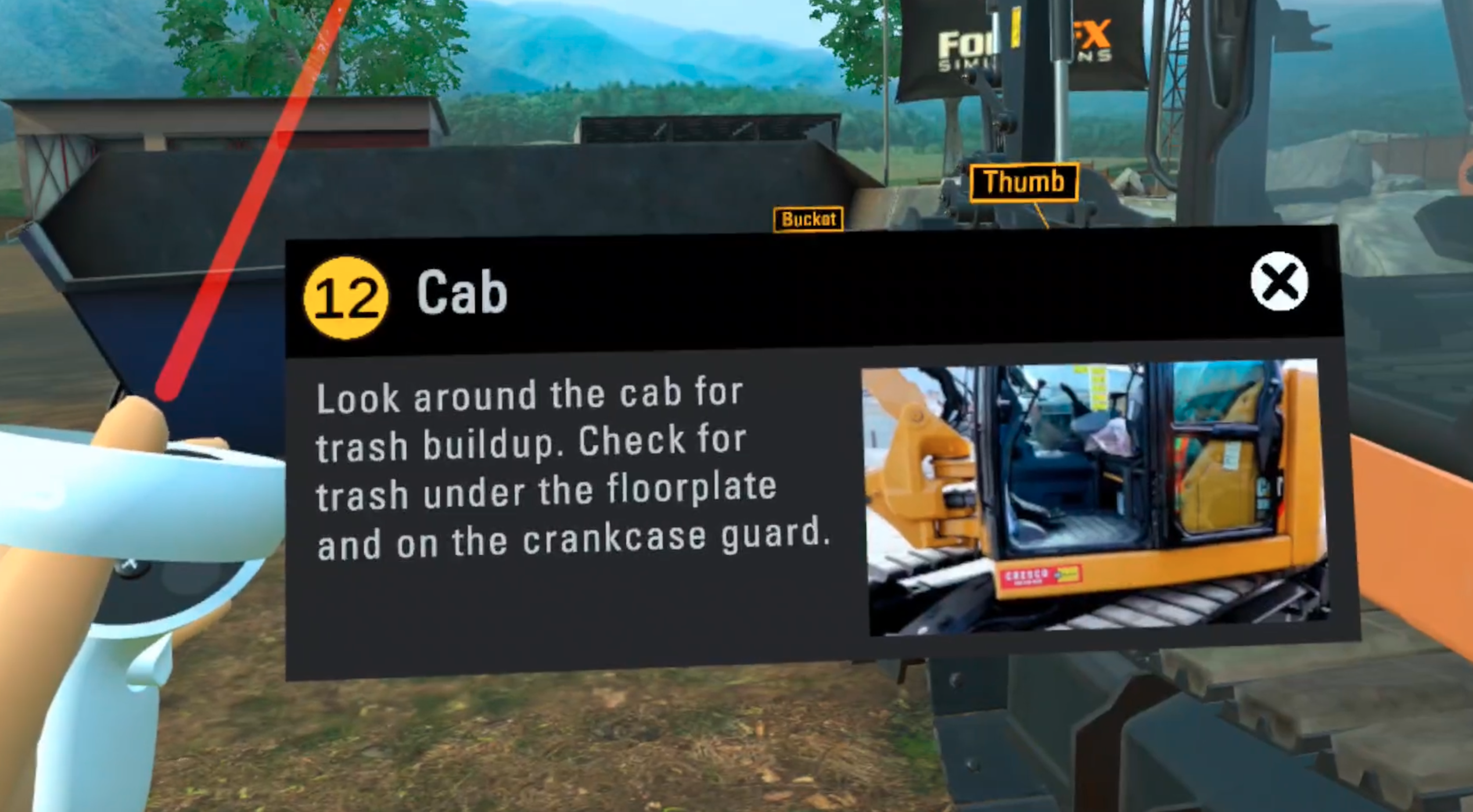

Select any numbered Inspection Point to open a Hand Mounted User Interface for the Inspection Point

Familiarization Inspection Points

Link to original
Link to original
Link to original

Modes of Operation

Modes of Operation
Operation Mode

Comprehensive control of excavator components, including boom, stick, and bucket, facilitating realistic simulations of heavy machinery operations.

User is challenged with dropping concrete pipes into a dumpster

Enter Operation Chair

Exit Operation Chair

Operation Mode Controls

Controls are enabled when the Joysticks are held

Position/Gestural based with Thumb Stick interaction for replicate physical rocker

Link to original

Walk Around Mode:

Exploration capabilities that allow users to inspect the environment and interact with various elements, promoting a hands-on learning experience.

Link to original

Main Menu User Interface

Uses the A Button to be Opened and Closed.

Stays in front of user within a threshold.

Hides Hand Mounted User Interface when open.

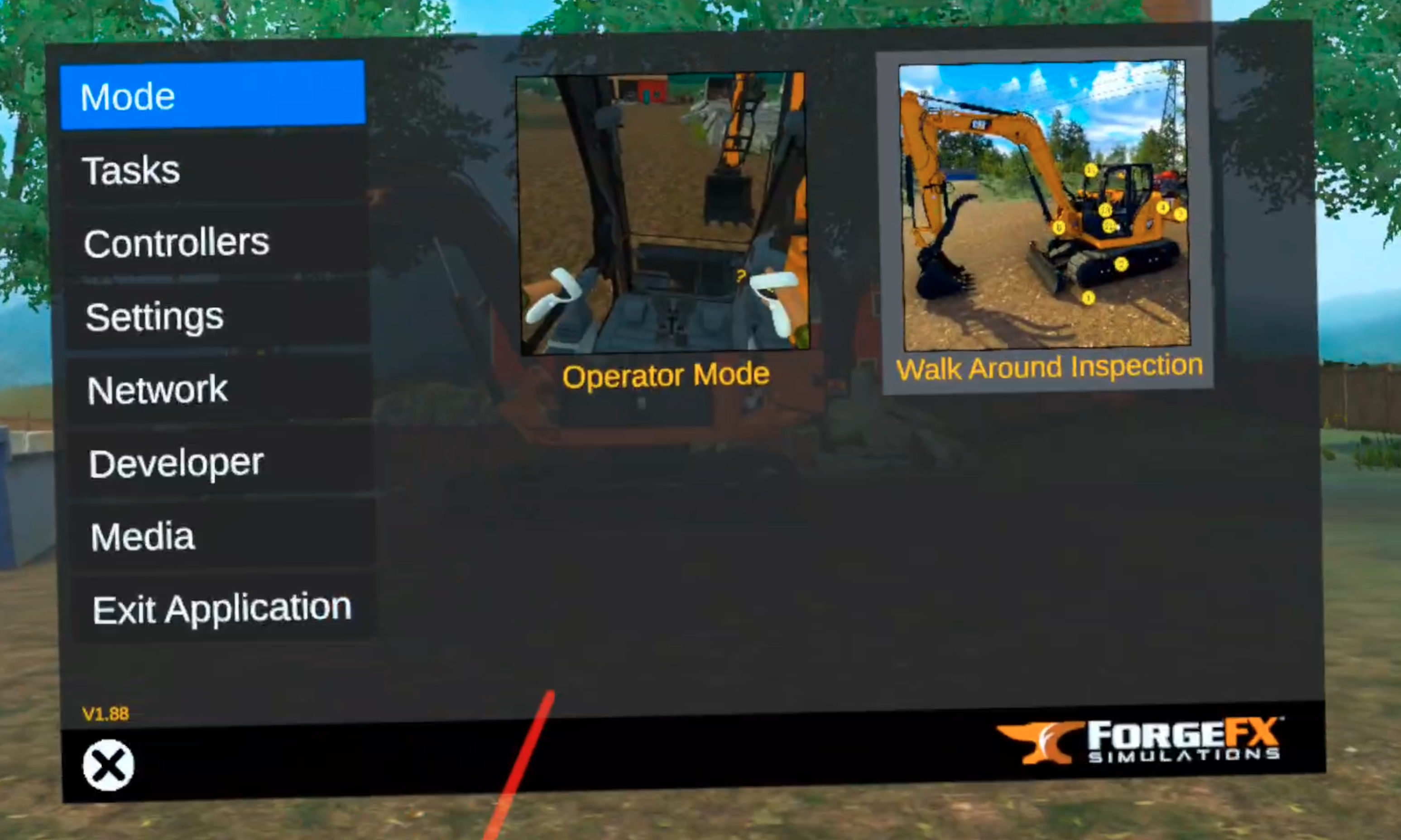

Mode

Select between Operator Mode and Walk Around Inspection

Walk Around Inspection is enabled by default

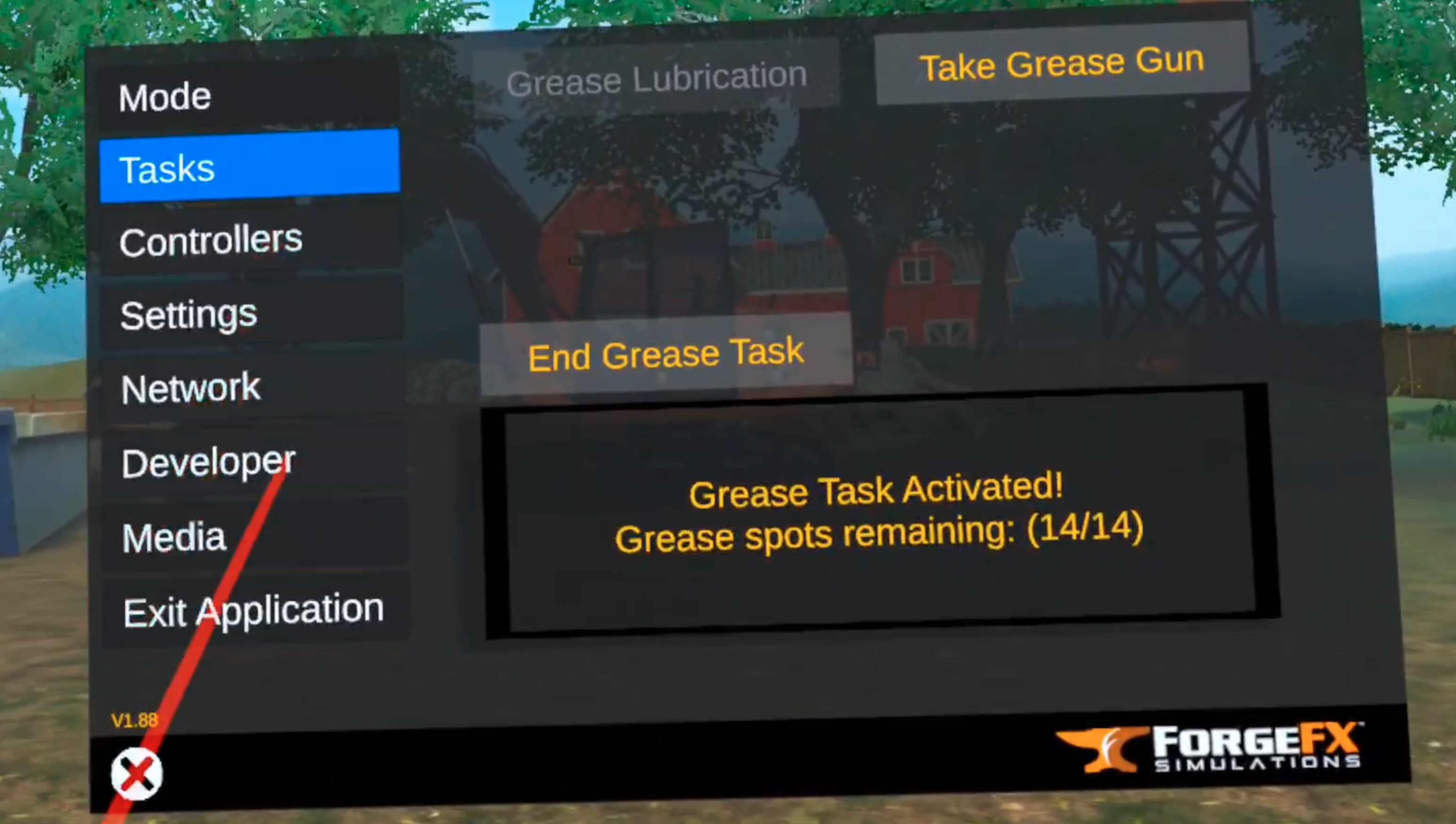

Tasks

Start/Stop the Grease Task

Track Grease Task Progress

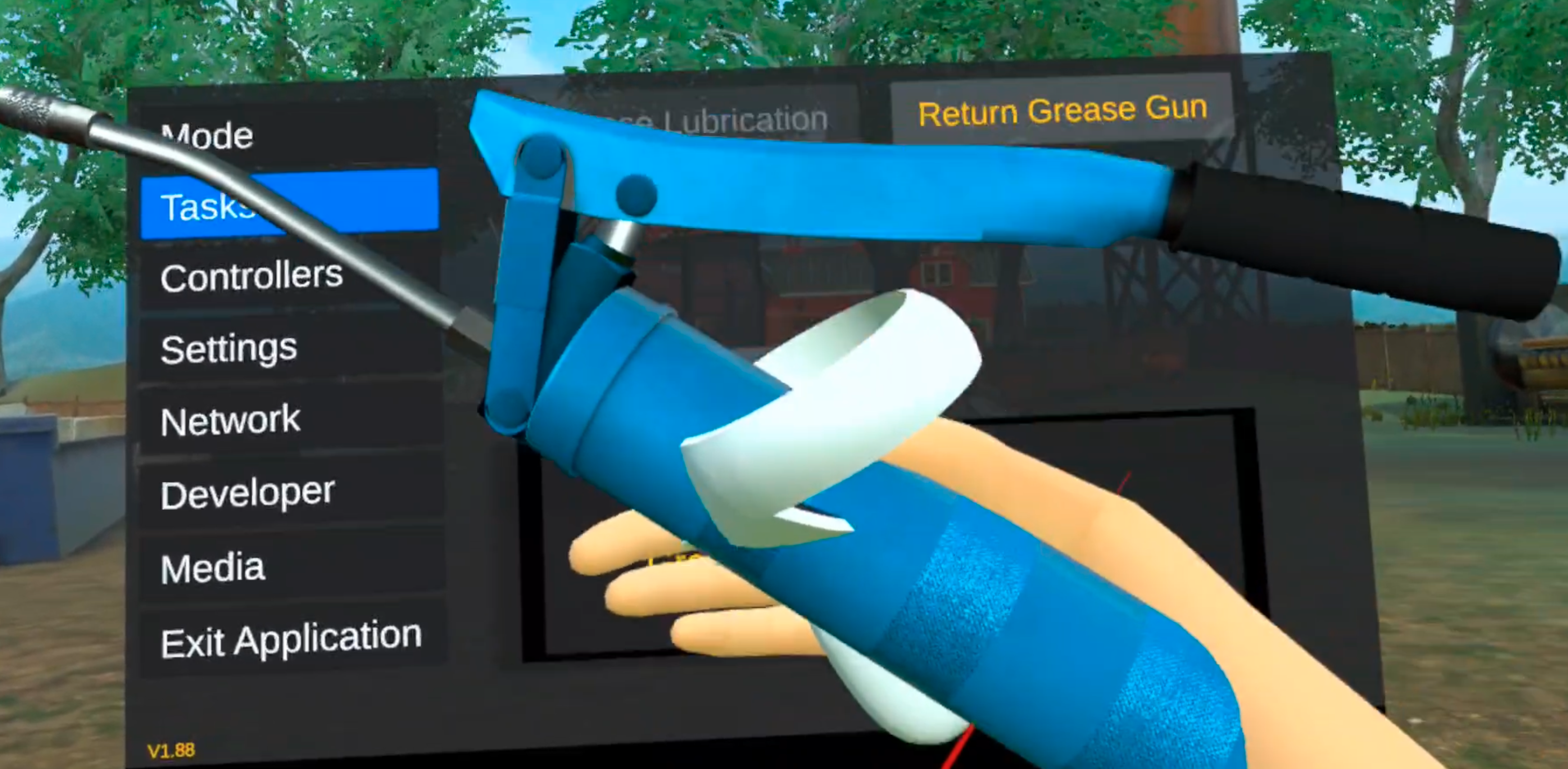

Take/Return Grease Gun

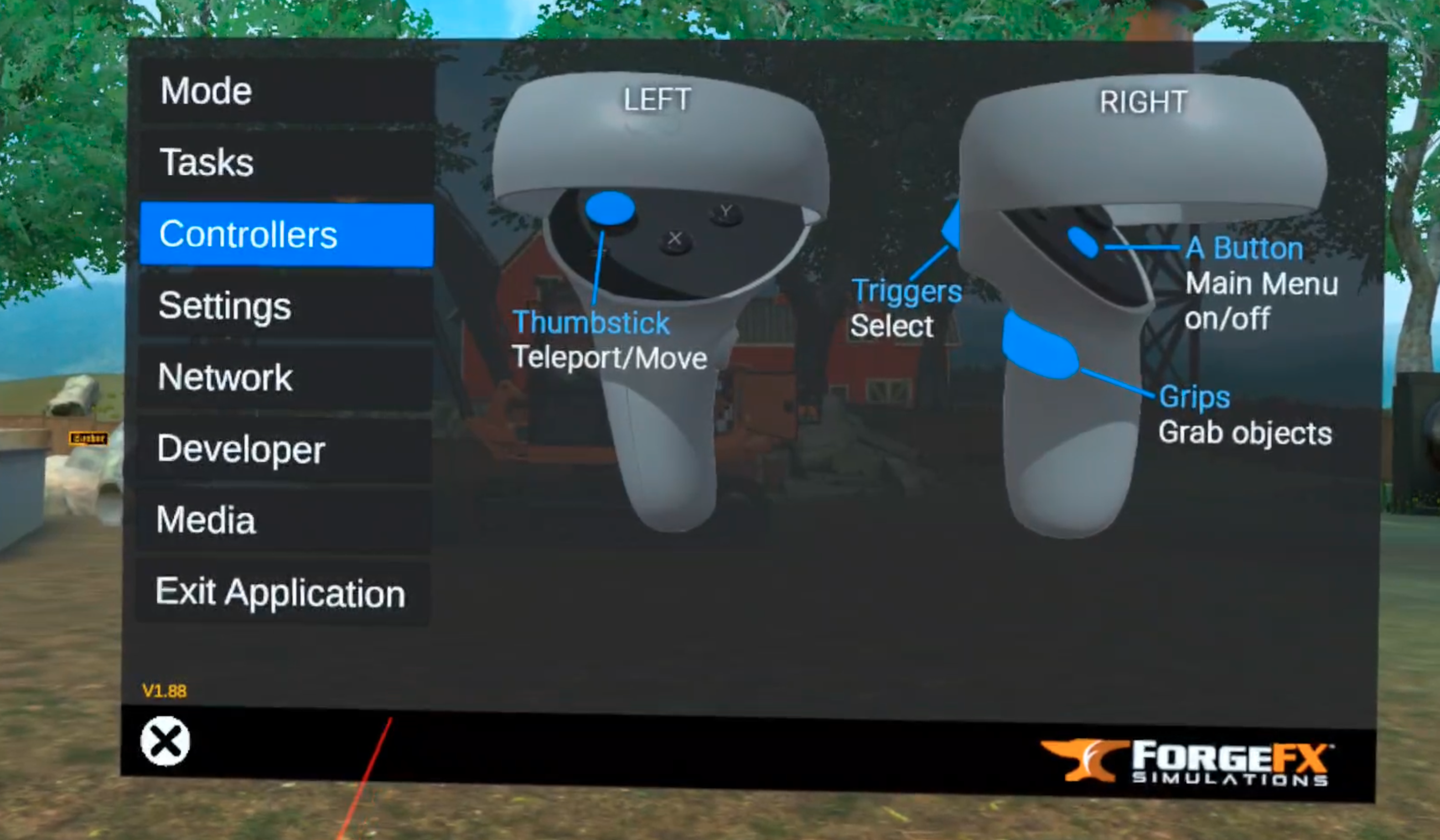

Controllers

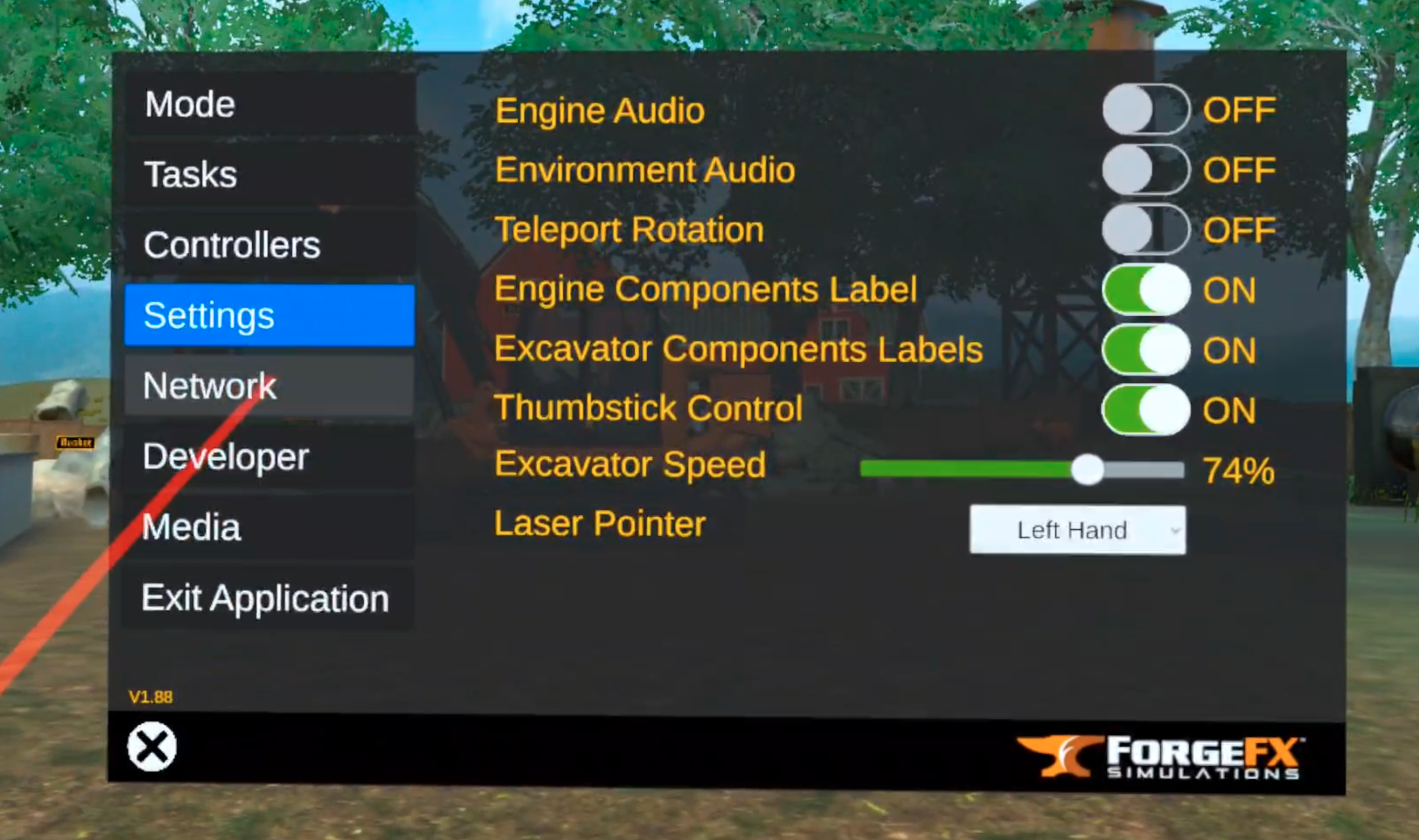

Settings

Engine Audio: turns on and off audio loud engine sound when vehicle is on.

Environment Audio: ambient noises

Teleport Rotation: Use the thumb stick to set your forward direction while teleport location selection is active

Engine Component Label: The labels on the backside of the vehicle

Excavator Components Label: The labels on the vehicles arms and bucket

Thumbstick Control: Does nothing?

Excavator Speed: Artificial speed controllers for virtual joystick sensitivity

Laser Pointer: Flips controls or disabled laser interactor to favor near field interactions

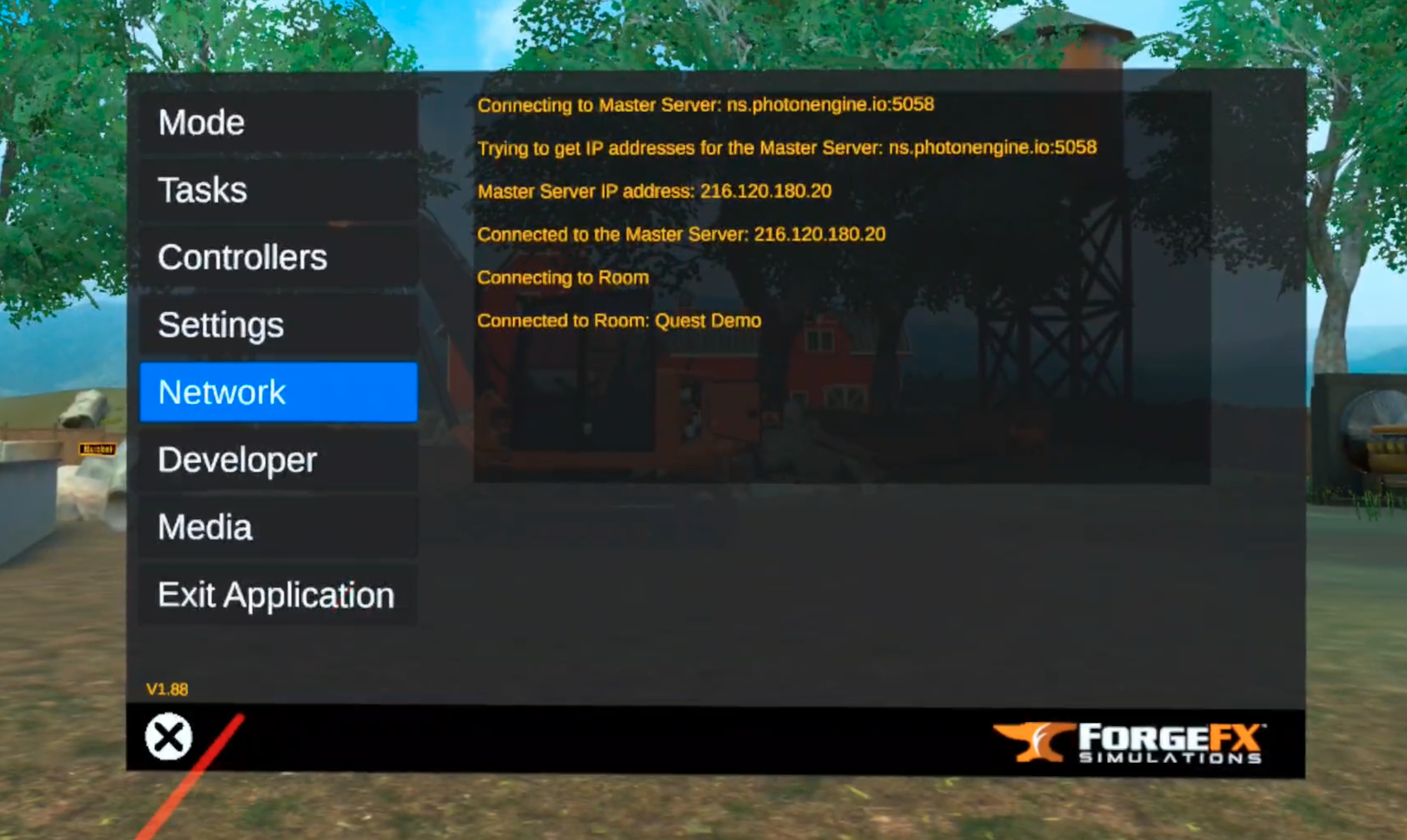

Network

Debug menu to show network connection status and details

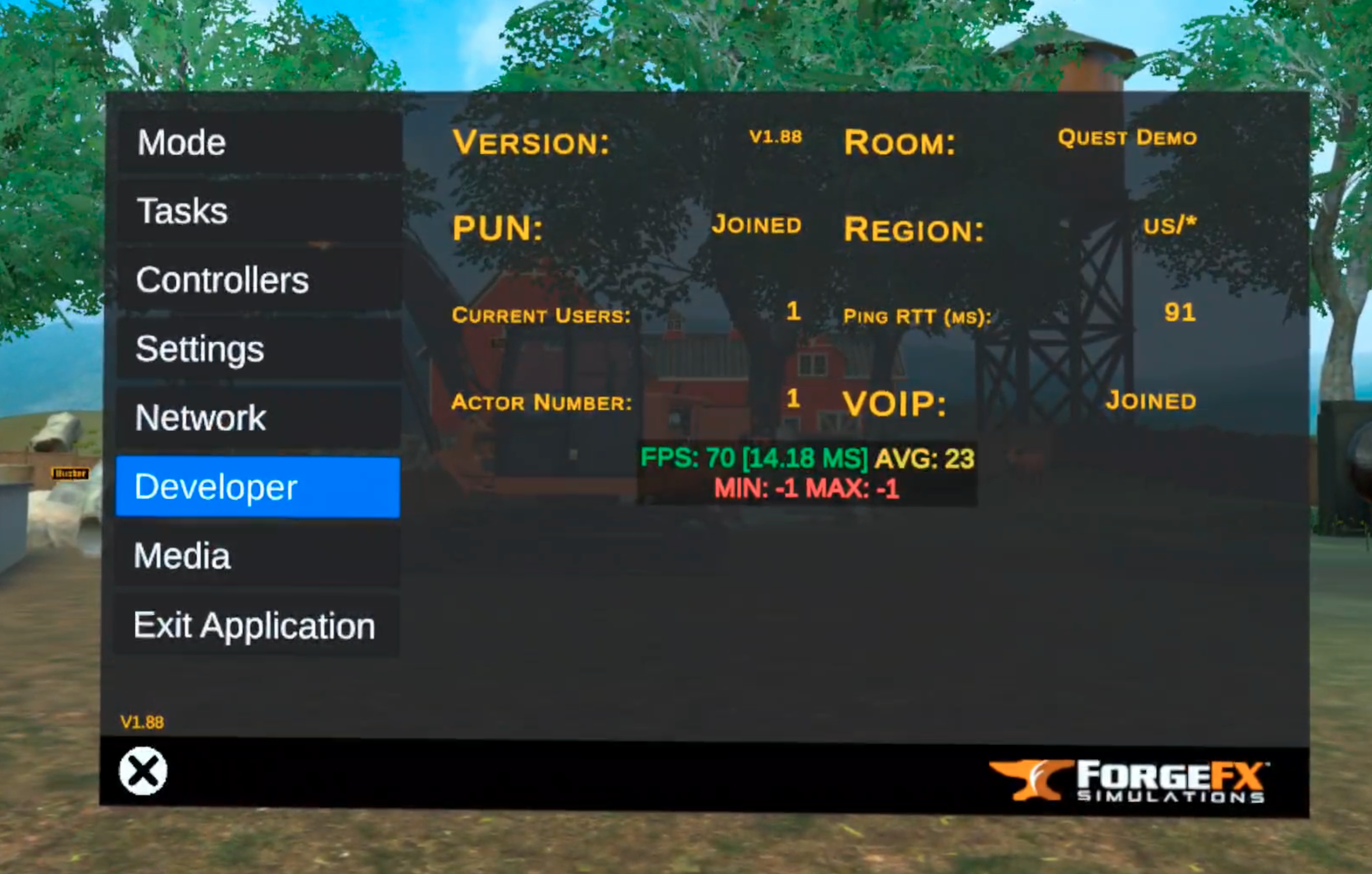

Developer

Developer Menu to show even more debug information

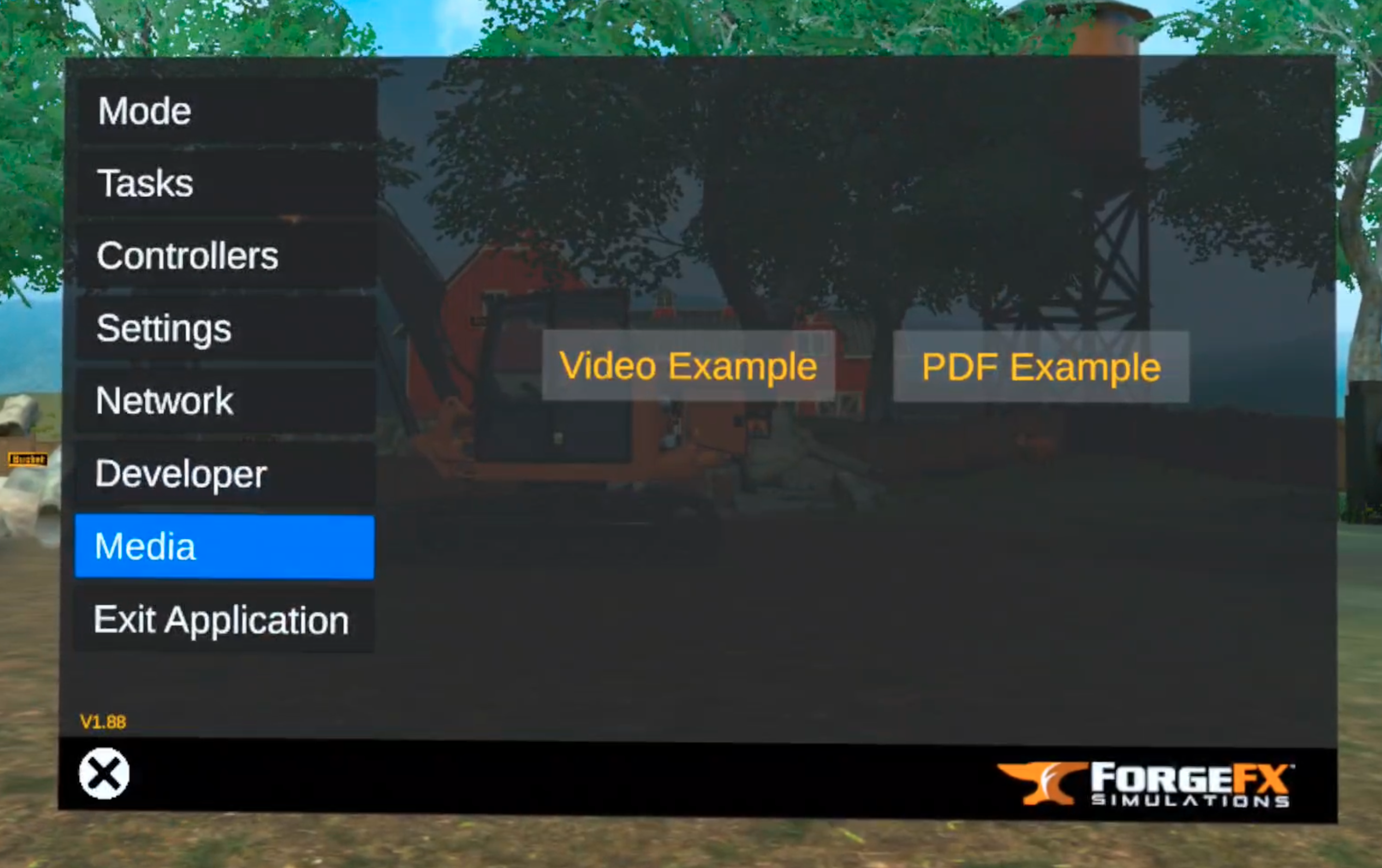

Media

Media tab to show playing Videos and interacting with PDF for individual users.

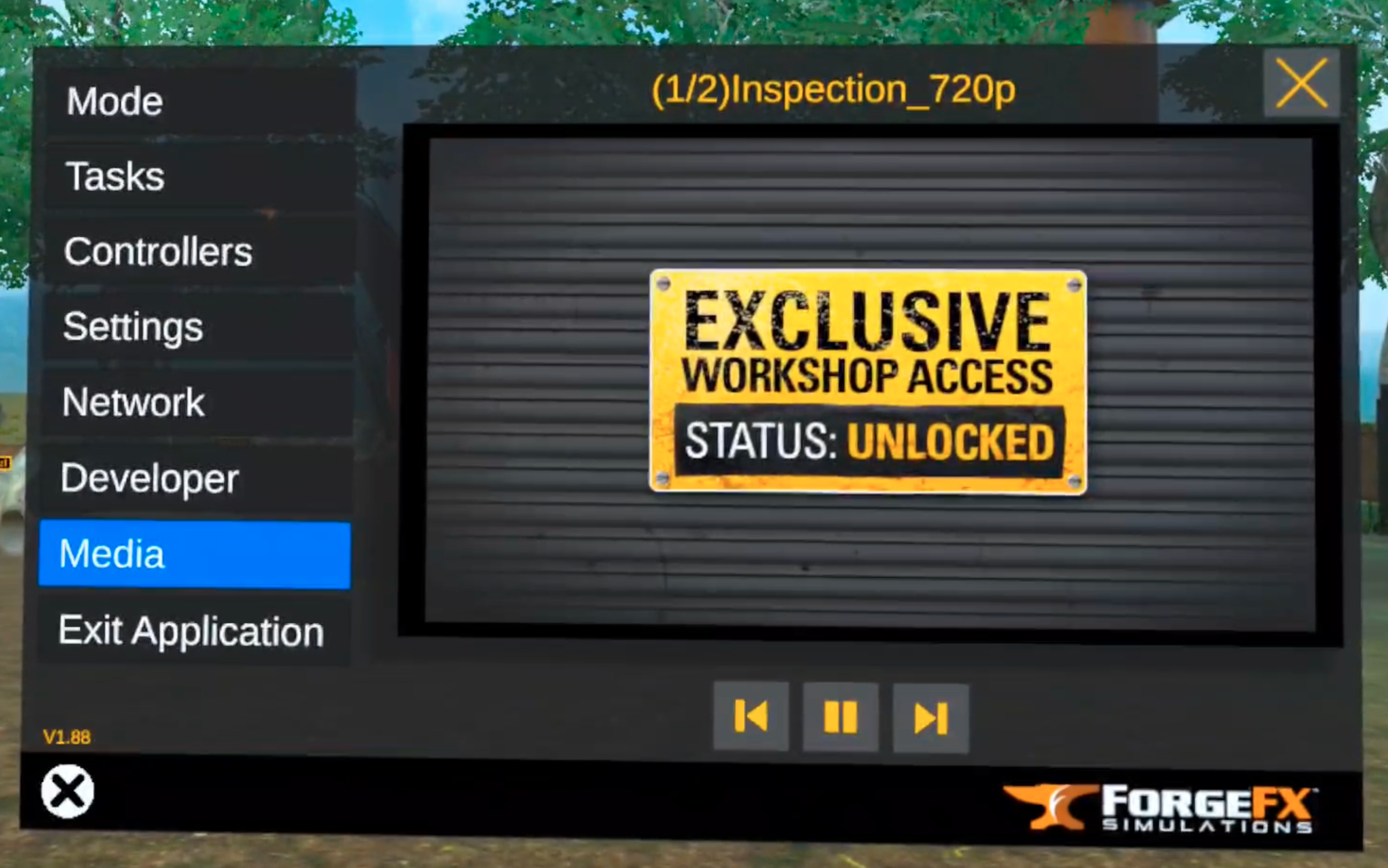

Video Example

Indexed Video Player with two different videos to play

No interactive video scrubber, volume controls, or full screen

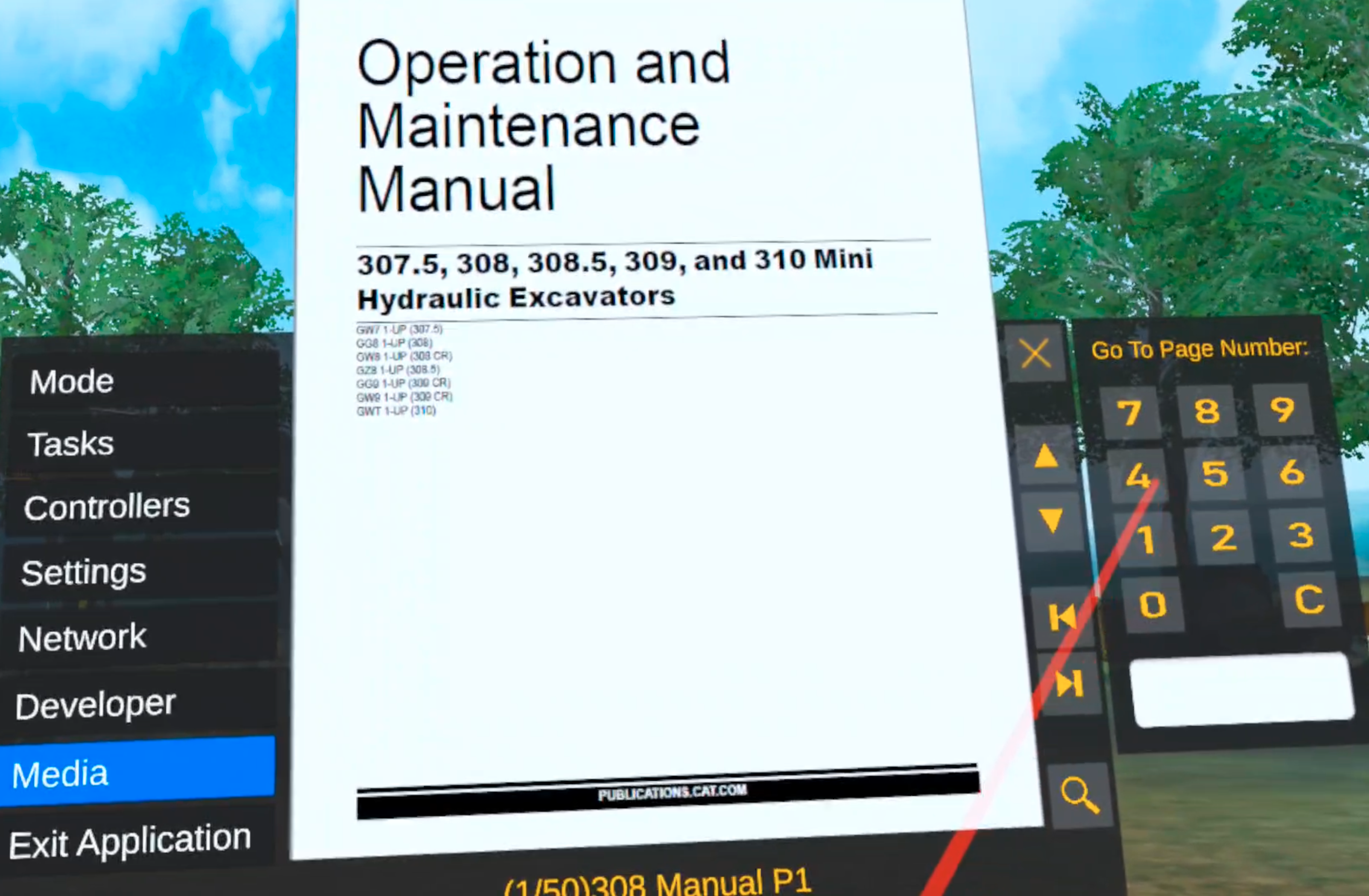

PDF Example

Next/Back Page Buttons

First/Last Page Buttons

Search function with pop out dial pad to set active page number

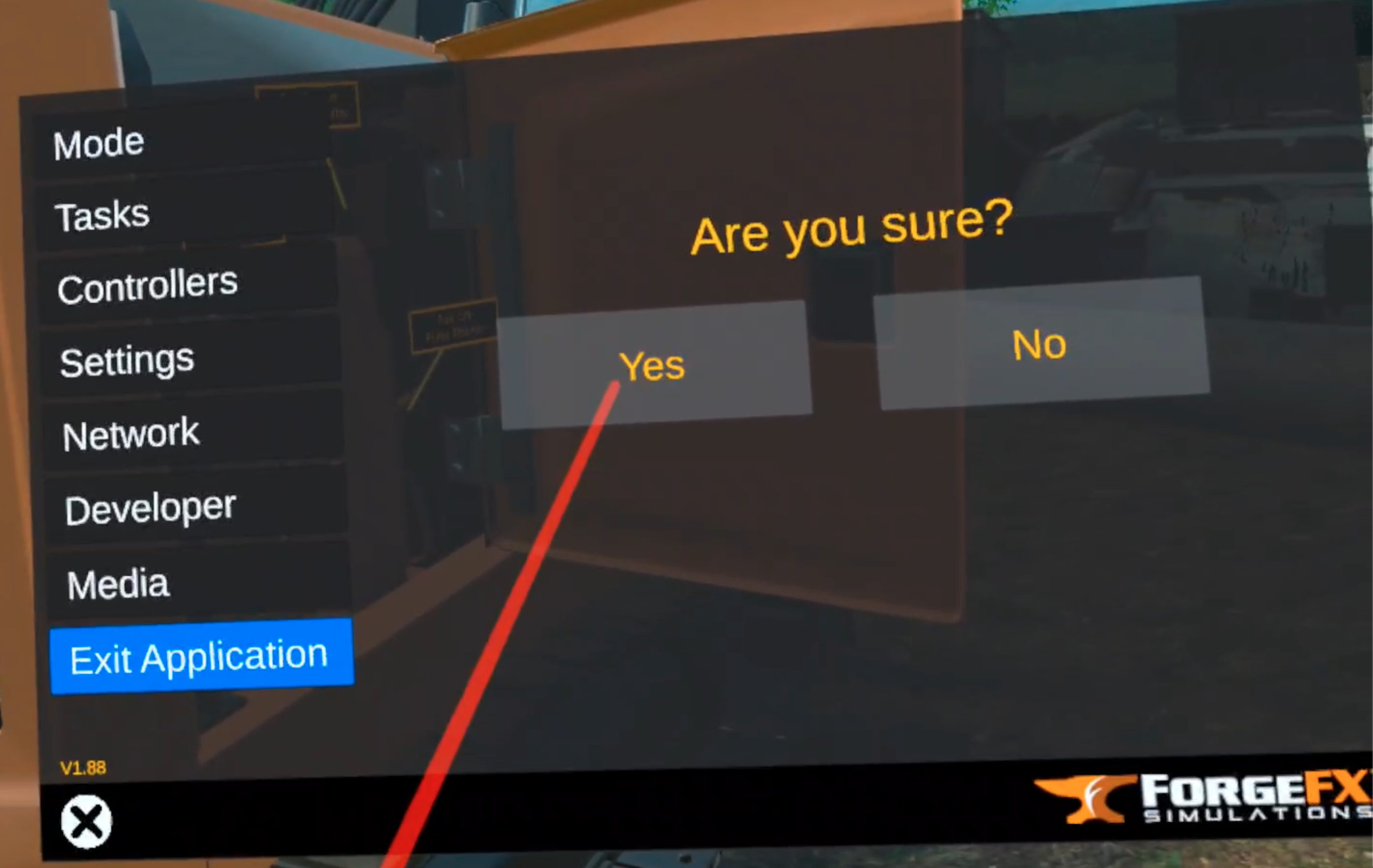

Exit Application

Two step confirmation to close the application
